EvoWash Plus
37×60W RGBL LED
37×60W RGBL LED
Output：43000 Lm
Beam angle：10 ~ 52°
CCT：2400 ~ 8500K
Uniform RGBL color mixing system and rainbow effect
Rich color mixing effect, linear adjustable color temperature
IP rating: IP66
Specification
OPTIC
Source: 37 × 60W RGBL LED
Output：43000 Lm
Zoom Range：10~52°
CCT：2400~8500 K
Source lifetime：>20000 H
EFFECT
Strobe: 1 ~ 25Hz
Uniform RGBL color mixing system and rainbow effect, single point LED control
Create unlimited dynamic, unlimited color changes
CONTROL & PROGRAM
Channel：21 / 28 / 169 CH
Protocal: DMX512, RDM, Artnet, sACN
Data connector：3 PIN (or 5 PIN) XLR，RJ45
Display: 2.4 inches touch screen
NFC: The lighting fixtures do not require power on and can be directly set up, diagnosed, and perform other functions through the CKC app
SOFTWARE
Via DMX signal to update
Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
PAN & TILT MOVEMENT
Pan: infinite rotation (360° )
Tilt: infinite rotation (360° )
HOUSING
Aluminum alloy structure+Carbon Fiber
Fan cooling
Resistant to salt corrosion
OTHER
IP rating: IP66
Work environment: -40℃ ~ 45℃
Startup environment: -20℃ ~ 45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：2650W
SIZE & WEIGHT
Size：546×388×530mm
N.W：35.4 kgs

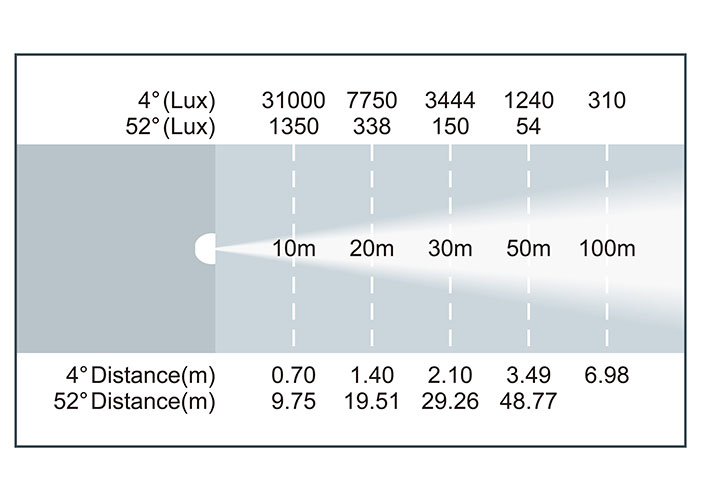

Photometrics
Dimensions
