Footslim M
Source：120 ×0.3W RGBLA LED
Output：1500Lm
Beam angle：X/56° Y/52°
Field angle：X/98° Y/87°
CCT：2000 ~ 10000K
CRI：Ra 95 / R9 95
Specification
OPTIC
Source：120 ×0.3W RGBLA LED
Output：1500Lm
Beam angle：X/56° Y/52°
Field angle：X/98° Y/87°
CCT：2000 ~ 10000K
CRI：Ra 95 / R9 95
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
LED refresh rate：900Hz~25KHz
Dimmer Curve：4 kinds
CONTROL & PROGRAM
Channel：8CH / 14CH / 12CH1 / 12CH2 / 13CH / 19CH
Protocal：DMX512, RDM
Data connector: Six-core power and signal combined input/output
Display: OLED display
SOFTWARE
Via DMX signal to update
Intelligent temperature protection to ensure LED service life
HOUSING
Aluminum alloy structure
Natural heat dissipation
OTHER
IP rating：IP66
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：45W
SIZE & WEIGHT
Size：500 × 73 × 47 mm
N.W：2 kgs
Photometrics
Dimensions
Accessories
Flight Case

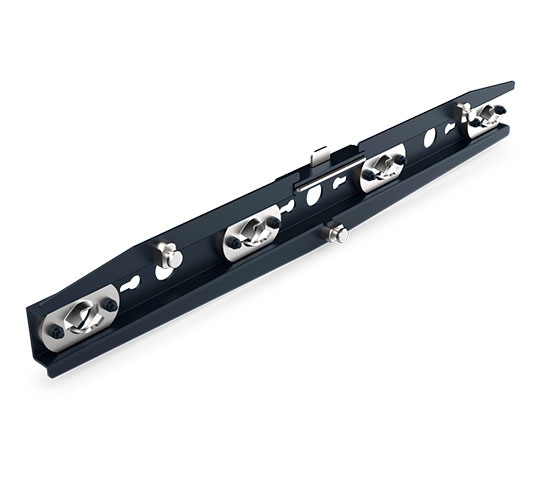

Hanging Bracket

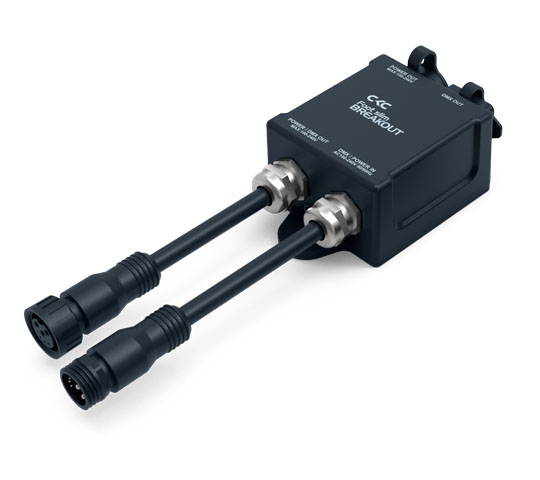

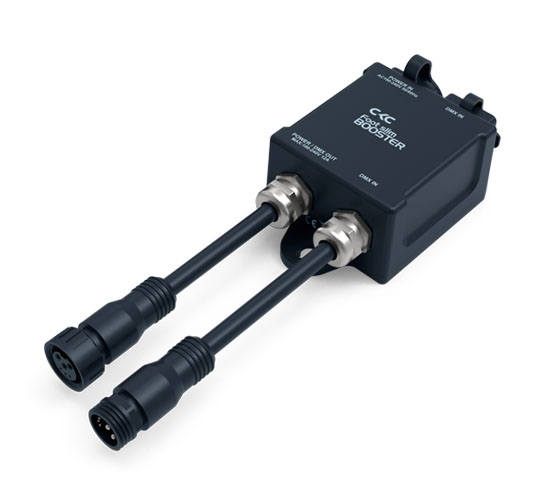

Connectors
